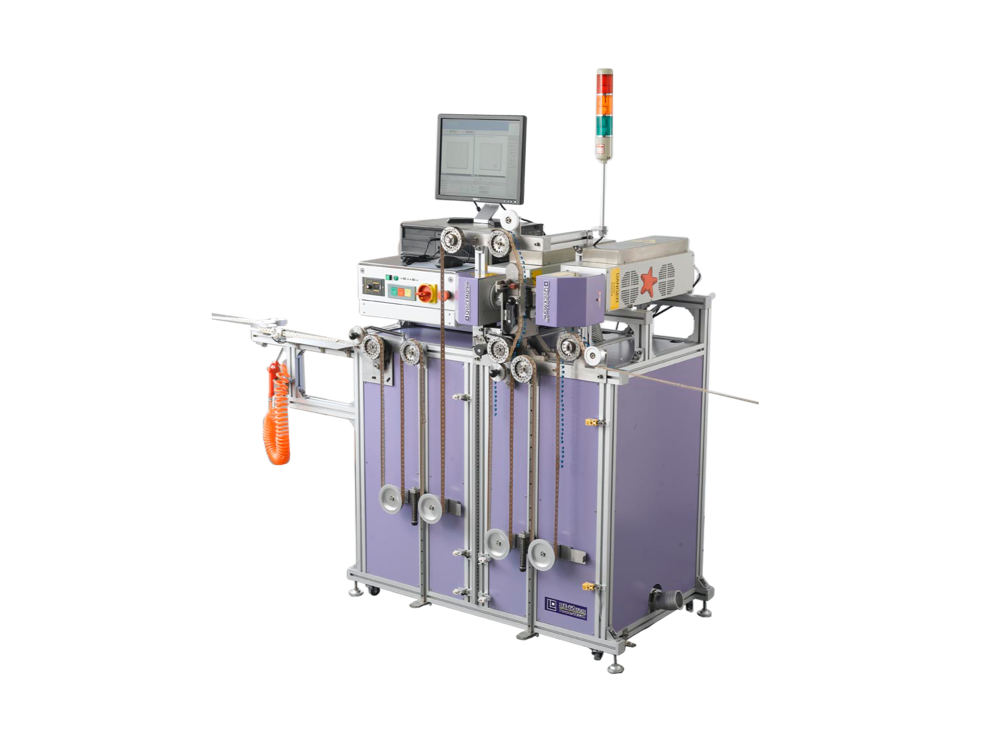

10W/30W Taping Capacitive Laser Marking Machine
It is used for single and double-sided marking of φ8-φ18 tape capacitors. It can be designed and manufactured according to the actual production and application requirements of customers, and only requires simple adjustments on the rails. Printing is accu
|
Suspended power supply |
Multiple sites in parallel |
Multi-channel high precision |
Supports multiple extensions |
| Type | 10W/30W Tape capacitive laser marking machine |
| Advantages |
The whole machine has a compact structure design and adopts imported fully enclosed CO2 low-power laser with stable performance. Air cooling is maintenance-free, and the average continuous trouble-free working time can reach more than 30,000 hours. Using high-speed galvanometer scanning system and professional strip feeding track, it is used for high-speed flight marking. The core control software is derived from linkage and has excellent performance. The seal editing and uploading operation is simple and convenient, with automatic counting and anti-reverse functions. |
| Main Features |
? Laser system CO2 ? Laser center wavelength 10640nm ? Laser output power 10/30W ? Marking range: 50x50mm, 70x70mm, etc. optional ? Minimum printing line width 0.06mm ? Minimum font height 0.5mm ? Input power 220V±10%/50HZ |
